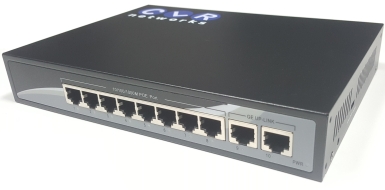

CLR-SWG-820P |
| |
|
| |
8*10/100/1000M PoE +2*10/100/1000M Switch |
| |
IEEE 802.3af/at |
| |
Total PoE 150W |
|
|
|
| |
|
|
|
|
|
|
| |
Overview |
|
| |
|
|
| |
CLR-SWG-820P series PoE switches provide power and data to powered devices (PD) over Cat5/Cat6 twisted pair cables. They have ten gigabitethernet ports, eight of which has the ability to supply power. The last two ports (9,10) are normal ethernet ports which can be used as uplink. |
|
| |
|
|
|
|
|
|
| |
To fulfill the demand of PoE for network applications with Gigabit speed transmission, CLR-SWG-820P PoE Gigabit Ethernet Switch is an ideal solution. The first eight 10/100/1000Mbps ports of the switch feature IEEE 802.3af/at Power over Ethernet (PoE) that combines up to 150 Watts power output and data per port over one Cat.5E / 6 Ethernet cable, with totally 150 Watts PoE budget on whole system. It is designed specifically to satisfy the growing demand of power consuming network PD (powered devices) such as network cameras, wireless LAN access points and other network devices. |
|
| |
|
|
|
|
|
|
| |
Advanced auto-sensing algorithm gives power only to IEEE802.3af/at end devices, so no need to worry about damaging non-PoE equipment. In addition, it cuts off the power when PoE devices are disconnected. |
|
| |
|
|
|
|
|
|
| |
Easy and reliable, CLR-SWG-820P series PoE switches automatically determine PoE requirements, speed, duplex type and cable type. They have LEDs on the front-panel that provide diagnostics of the whole system and help the operator to monitor the status of each individual port. Over current protection and short circuit protection are also supported to ensure the power supply safety. |
|
| |
|
|
| |
CLR-SWG-820P has side brackets so that it can either be mounted on a wall with the help of mounting hardware or positioned on desktop. |
|
| |
|
|
|
|
|
|
| |
Applications |
|
|
|
|
|
| |
|
|
|
|
|
|
| |
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system (ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects |
|
| |
|
|
|
|
|
|
