  CLR-VGA-E120
  CLR-VGA-E120

  HDbitT VGA Extender over TCP/IP Network
with Audio




  Overview



CLR-VGA-E120 is a perfect solution to transmit VGA video and audio from video sources like DVD Player, Blu-ray Player Set-top box, console systems or other video equipments, over current TCP/IP network. Up to 253 receivers can get the VGA signal from one source using the cat6 UTP infrastructure. It can achieve 120m of transmission distance.CLR-VGA-E120 incorporates HDbitT transport technology to extend VGA over ethernet switches.

It also supports audio transmission function. As an additional function, the CLR-VGA-E120 can be utilized as VGA splitter in its nature. Because the VGA signal from one source is being splited to all receivers through the network.



  Area of usage
- Long distance transmission VGA video and audio throughout TCP/IP network.
- VGA monitors in the shopping centers, hospitals, schools, etc.
- Video conference systems
- Medical monitoring system
- CCTV, multimedia projects
- The industrial automation and control systems
- Security monitoring system
- Multimedia network education system
- Long-distance network server monitoring
- Military visual systems


  Application Diagram

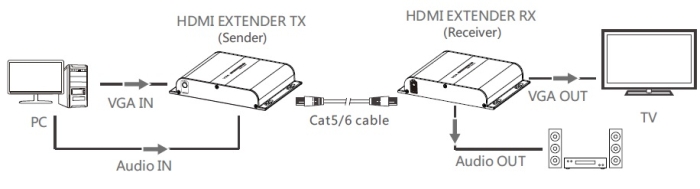

- Point to Point connection up to 120m
CLR-VGA-E120 application point to point

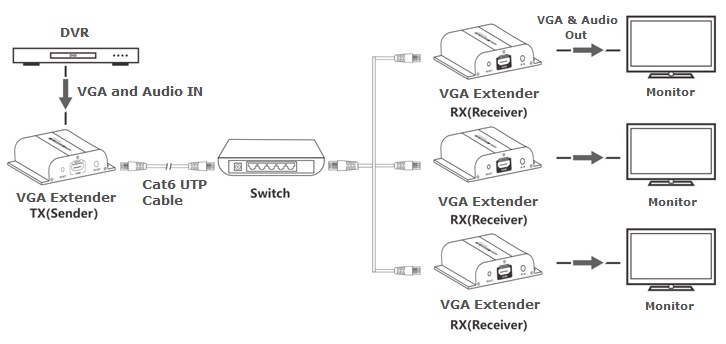

- Point to Multipoint connection realizes extender and splitter functions by using network switch
CLR-VGA-E120 application point to multipoint
