  CLR-IES-G802P
  CLR-IES-G802P

  8*10/100/1000Base-TX POE + 2*SFP (1G) Din-Rail Managed Industrial Switch




  Overview

  CLR-IES-G802P is 10/100/1000Mbps L2+ managed industrial POE+ switch which provides a reliable network infrastructure. It has intelligent features needed to improve the availability of critical applications, protects sensitive information, and optimizes network bandwidth to deliver information and applications more effectively.

CLR-IES-G802P Industrial switch supports PoE (Power-over-Ethernet) on each RJ45 port. The switch is classified as power source equipment (PSE), and when used in this way, CLR-IES-G802P enables centralization of the power supply and provides up to 15.4/25.4 watts of power on each RJ45 port. It can be used to power IEEE 802.3af/at compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

CLR-IES-G802P industrial PoE ethernet switch can work in the harsh industrial electromagnetic environments for industrial Ethernet devices, over long distances via optical fiber and anti-electromagnetic interference with communications, suitable for different regions with various temperature levels.

Shell is made of aluminum extrusion, lighter, stronger, more resistable to corrosion and electromagnetic interference. Switch is stable and secure for Industrial Ethernet applications. Standard DIN-35 rail type installation method is a plus.

CLR-IES-G802P provides a convenient, robust and reliable way for networking industrial control systems. It can satisfy customers requirements for long distance, high speed transmissions.

CLR-IES-G802P adopts industry standard design, IP40 protection under -40 to 75°C working temperature. Its power supply input is 46V ~ 50VDC

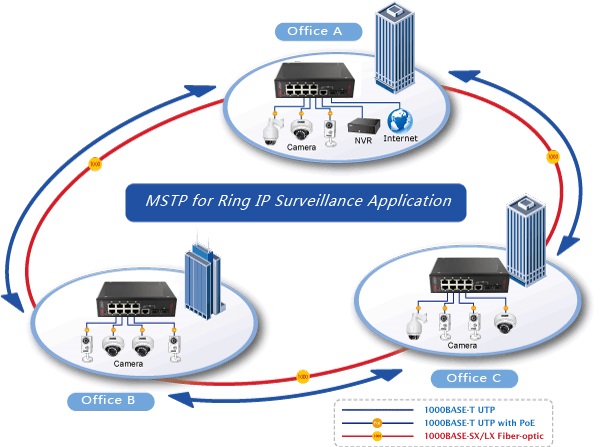

  Application
