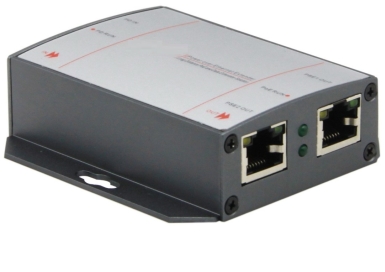

  CLR-PSE-104
  CLR-PSE-104

  Fast Ethernet PoE Extender 48VDC IEEE 802.3af 15.4W




  Specifications


 Standards - IEEE802.3af PoE
- IEEE802.3 10Base-T
- IEEE802.3u 100Base-TX
- IEEE802.3x flow control
 PoE ports - 1 PoE Port (Input): Data+Power, 2 PoE Ports (Output): Data+Power
 POE Power -15.4W, no external power adapter
 Wiring - Power provided over pin 4/5(+),7/8(-) or 1/2(+),3/6(-)
- Cable: UTP cat6 or higher
 Processing - Store-and forward
- Half-duplex back pressure
- IEEE802.3X full-duplex flow control
 Data rate - 10/100Mbps
 Installation and Management - Plug and play installation
- Endspan automatically detects all devices support for PoE
 LED indicators - System power, PoE max. power
- Per port: Link, speed, PoE active, PoE error
 Safety - CE / FCC / RoHs
 Power Requirements - No external power
 Environment - Working Temperature: 0°~ 55°C
- Storage Temperature: -20°~ 75°C
 Dimensions - L x W x H: 80 x 76 x 25mm
